IMS-Solar BV is an internationally operating producer of a sustainable mounting system for solar panels, which can be applied to a corrugated roof, steel roof or tiled roof. The system does not put any pressure on the solar panels and is quick and easy to install.
Calculation software for project costs
IMS-Solar.Pro.Tool
Click to install
Easy to work with
Made from recycled material
Environment friendly
High quality
20 years warranty
Corrugated roof

Simple, reliable and easy to install in 5 steps

  • Installing BP corrugated brackets
  • Installing BP basic profile
  • Mounting IP-fix
  • Click IP profiles
  • Insert solar panels
Download brochure

Productlist:

12031
BP basic profile 6m
12032
BP basic profile black 6m
14031
IP-30 insert profile heavy 6,2m
14032
IP-30 insert profile heavy black 6,2m
14041
IP-30 insert profile light 6,2m
14042
IP-30 insert profile light black 6,2m
14045
IP-30 insert profile light 4m
14046
IP-30 insert profile light black 4m
14051
IP-35 insert profile heavy 6,2m
14052
IP-35 insert profile heavy black 6,2m
14061
IP-35 insert profile light 6,2m
14062
IP-35 insert profile light black 6,2m
14065
IP-35 insert profile light 4m
14066
IP-35 insert profile light black 4m
21051
IP-E insert profile end cap
21052
IP-E insert profile end cap black
21061
IP-C insert profile connector
21062
IP-C insert profile connector black
34040
IP-Fix hammer head with nut
34041
IP-Fix hammer head with nut black
22012
BP-C basic profile connector complete set
22013
BP-C basic profile connector black complete set
22031
BP-E basic profile end cap
20153
IMS - Alu angle bracket with 2 rivets
Available mid-quarter 1 2024
22011

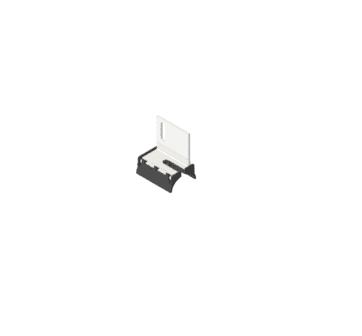

IMS - corrugated bracket
22055
IMS - hanger bolt M10*200 complete set
22056
IMS - hanger bolt M10*250 complete set
22060
IMS - roof hook complete incl. 3 wood screws 6,3*80
Available mid-quarter 1 2024
21081
IMS - optimizer bracket
21082
IMS - cable bracket
60101
IMS - stainless steel mounting tool
60104
IMS-stainless steel power ground clamp
60111
IMS - stainless steel nut M10 A2
60112
IMS-stainless steel hammer head M10-20mm
34047
IMS - EPDM panel securing
Info

Extra info about product

Based on years of experience, IMS-Solar BV has developed a sustainable and environmentally conscious installation system. Reuse of aluminum forms the basis of the IMS-Solar mounting system. This not only creates environmentally conscious solar energy; the solar panels are also installed sustainably through our system. We are original in that!
